Read-only demonstration. Four sanitised or hypothetical engineering projects. Each states its own validation status; nothing shown is engineer approved.
Cropped images from the native CFD viewer (static screenshots, not interactive models) and Hexanta plots drawn from evidence values.

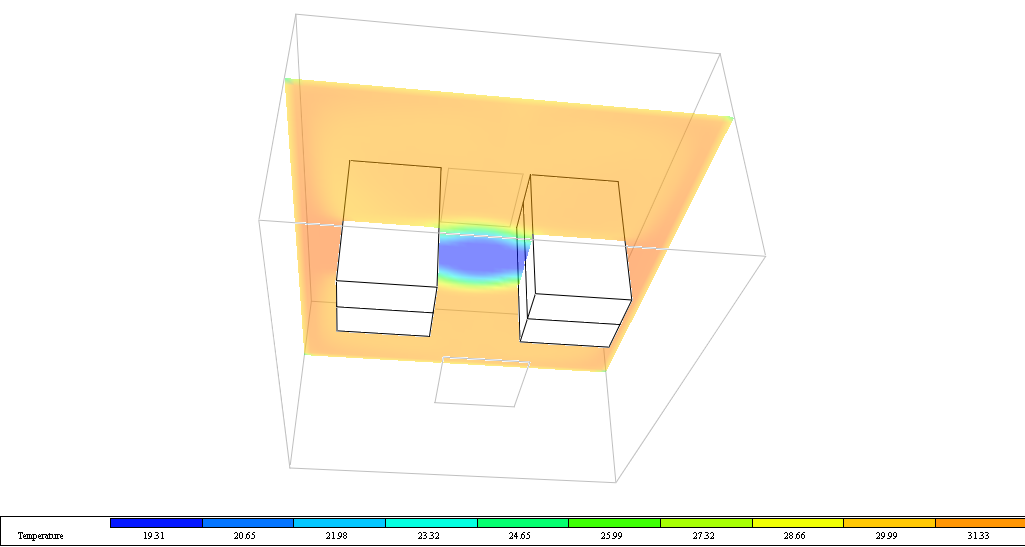

Optimised design - temperature, vertical slice x = 2.75 mDC00O-R1 converged field, filled temperature contour through the rack rows: cold aisle supplied from the floor (blue), hot aisles behind the racks (orange). Temperature colour key (native) 19.3-34.0 °C; the two warmest key cells are cropped off.Screenshot of the native tool (static image) · source: cfd-DC00-20261024-r2/figures/m42-DC00O-R1-x2.75-temperature.png (cropped)Baseline design - temperature, vertical slice x = 2.75 mDC00B-R5 field (final baseline R6 differs by at most 0.02 K at the monitors), same slice and view. Temperature colour key (native) 19.3-34.0 °C; the two warmest key cells are cropped off.Screenshot of the native tool (static image) · source: cfd-DC00-20261024-r2/figures/m42-DC00B-R5-x2.75-temperature.png (cropped)Optimised design - velocity vectors, x = 2.75 mDC00O-R1 velocity vectors with the two extracts over the hot aisles. Velocity key (native) from 0.00 m/s; the two highest key cells are cropped off. Scales differ between the baseline and optimised images.Screenshot of the native tool (static image) · source: cfd-DC00-20261024-r2/figures/m42-DC00O-R1-x2.75-vectors.png (cropped)Baseline design - velocity vectors, x = 2.75 mDC00B-R5 velocity vectors: the floor jet rises through the cold aisle towards the ceiling extract above it. Velocity key (native) from 0.01 m/s; the two highest key cells are cropped off. Scales differ between the baseline and optimised images.Screenshot of the native tool (static image) · source: cfd-DC00-20261024-r2/figures/m42-DC00B-R5-x2.75-vectors.png (cropped)

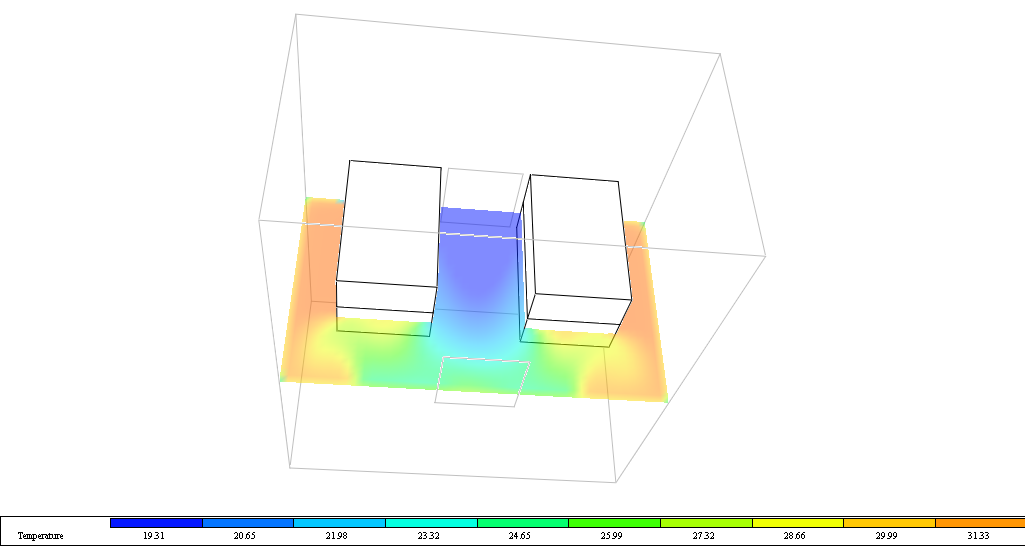

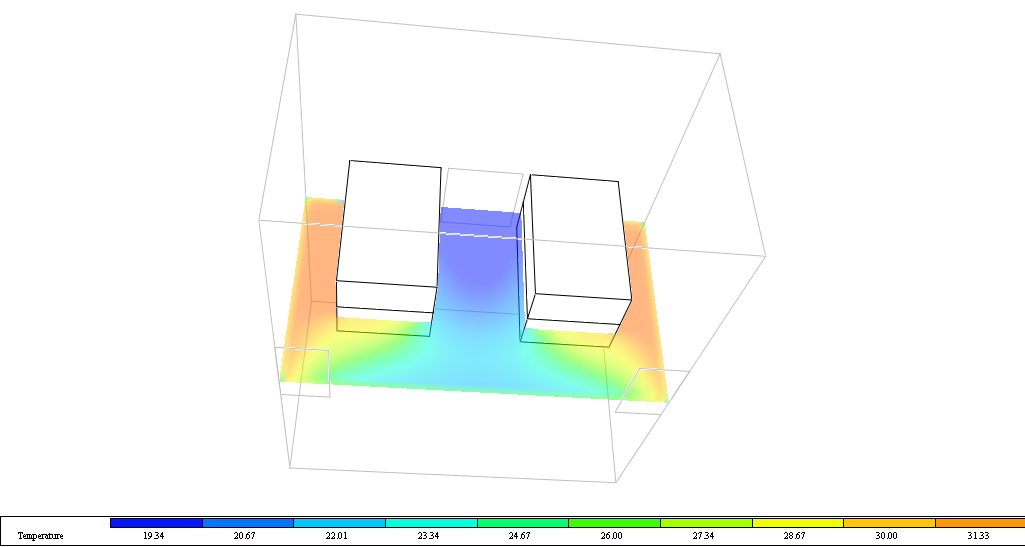

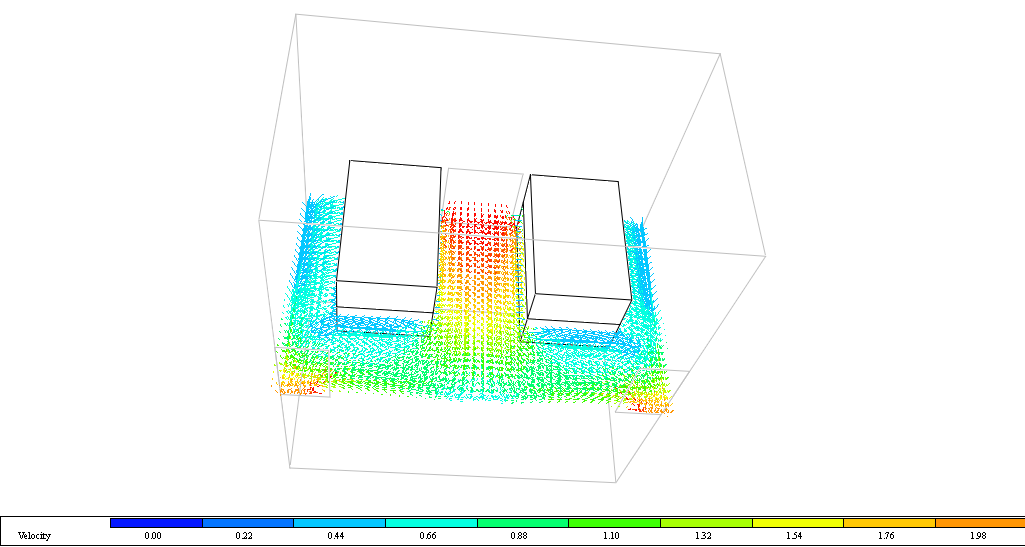

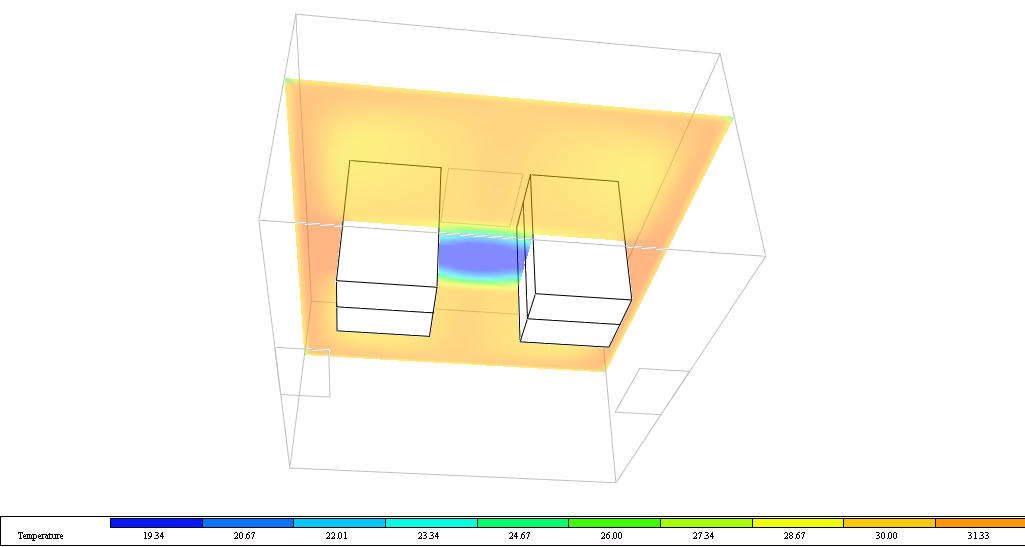

Optimised design - temperature, plan slice z = 1.05 mDC00O-R1 horizontal slice at mid rack height. Temperature colour key (native) 19.3-34.0 °C; the two warmest key cells are cropped off.Screenshot of the native tool (static image) · source: cfd-DC00-20261024-r2/figures/m42-DC00O-R1-z1.05-temperature.png (cropped)Baseline design - temperature, plan slice z = 1.05 mDC00B-R5 horizontal slice at mid rack height. Temperature colour key (native) 19.3-34.0 °C; the two warmest key cells are cropped off.Screenshot of the native tool (static image) · source: cfd-DC00-20261024-r2/figures/m42-DC00B-R5-z1.05-temperature.png (cropped)Optimised design - velocity vectors, plan slice z = 1.05 mDC00O-R1 velocity vectors at mid rack height. Velocity key (native) from 0.00 m/s; the two highest key cells are cropped off.Screenshot of the native tool (static image) · source: cfd-DC00-20261024-r2/figures/m42-DC00O-R1-z1.05-vectors.png (cropped)

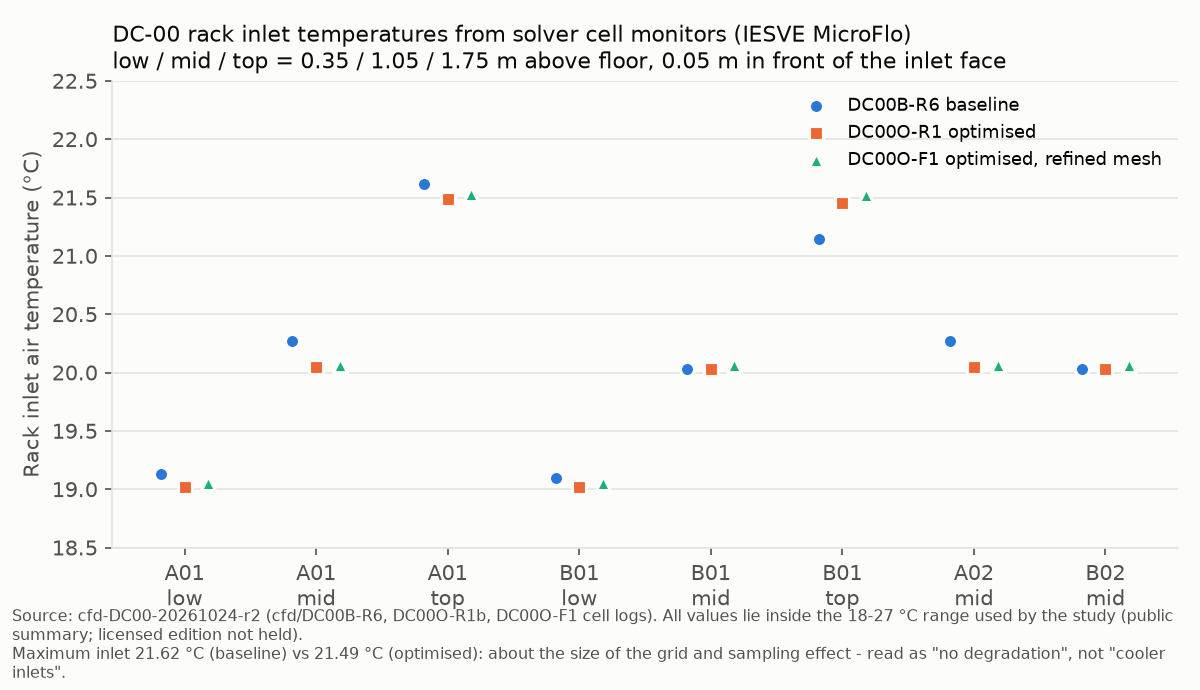

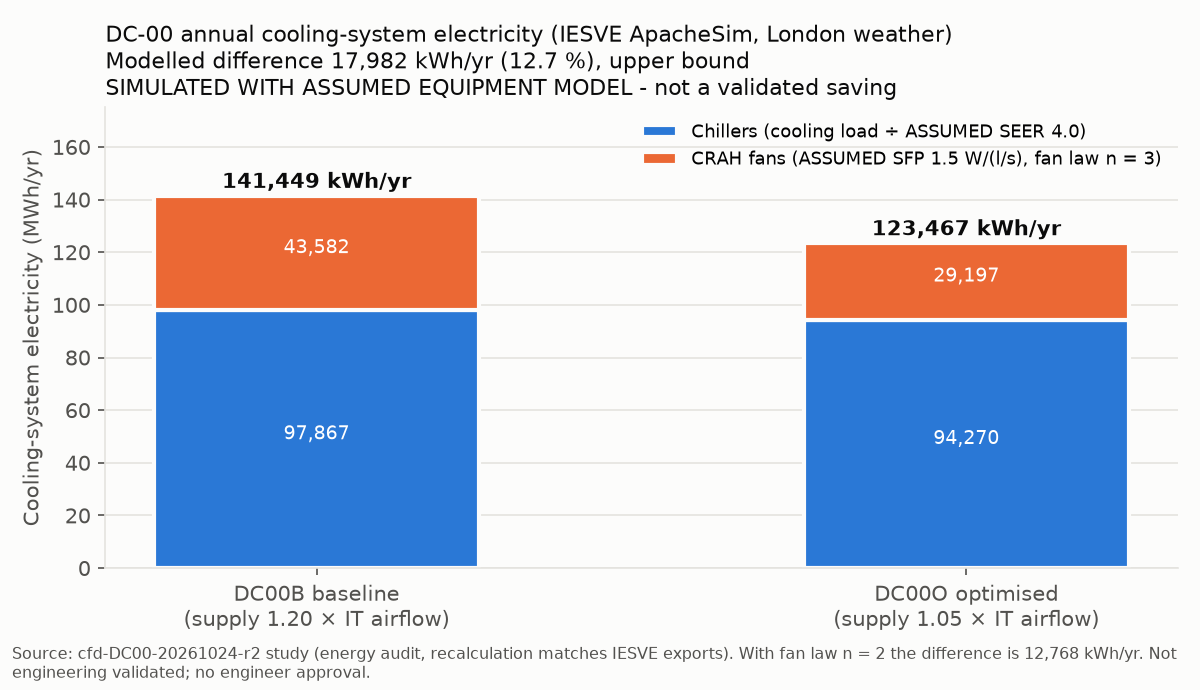

Rack inlet temperatures (Hexanta plot)Solver cell-monitor values at each rack inlet for the final baseline, the final optimised design and the refined mesh. Differences are about the size of the grid and sampling effect.Hexanta plot of evidence values · source: cfd-DC00-20261024-r2/study-manifest.study.json (cfd.*.racks)Annual cooling-system electricity (Hexanta plot)Chiller and fan electricity from the two annual simulations. SIMULATED WITH ASSUMED EQUIPMENT MODEL: the 17,982 kWh/yr (12.7 %) difference is an upper bound, not a validated saving.Hexanta plot of evidence values · source: cfd-DC00-20261024-r2/study-manifest.study.json (audit); cfd-DC00-20261024-r2/dsm/*/export-*.jsonConvergence history (Hexanta plot)Largest of the 7 residuals per outer iteration, read from the solver residual logs of DC00B-R6 (2,599 iterations) and DC00O-R1 (653). Convergence PASS does not make the study valid.Hexanta plot of evidence values · source: cfd-DC00-20261024-r2/cfd/DC00B-R6/HX_DC00_M1.log; cfd-DC00-20261024-r2/cfd/DC00O-R1/HX_DC00_MO.log
Sanitised derivative of preserved evidence (cfd-DC00-20261024-r2, cfd-DC01-N1-DSM-20261024). Nothing was re-simulated. Screenshot crops are static images of the native viewer; plots and the report contain only values read from the evidence. · Pack cfd-data-centre-r2 (built 2026-10-25); every file is checked against its SHA-256 before it is shown.
